產品介紹：

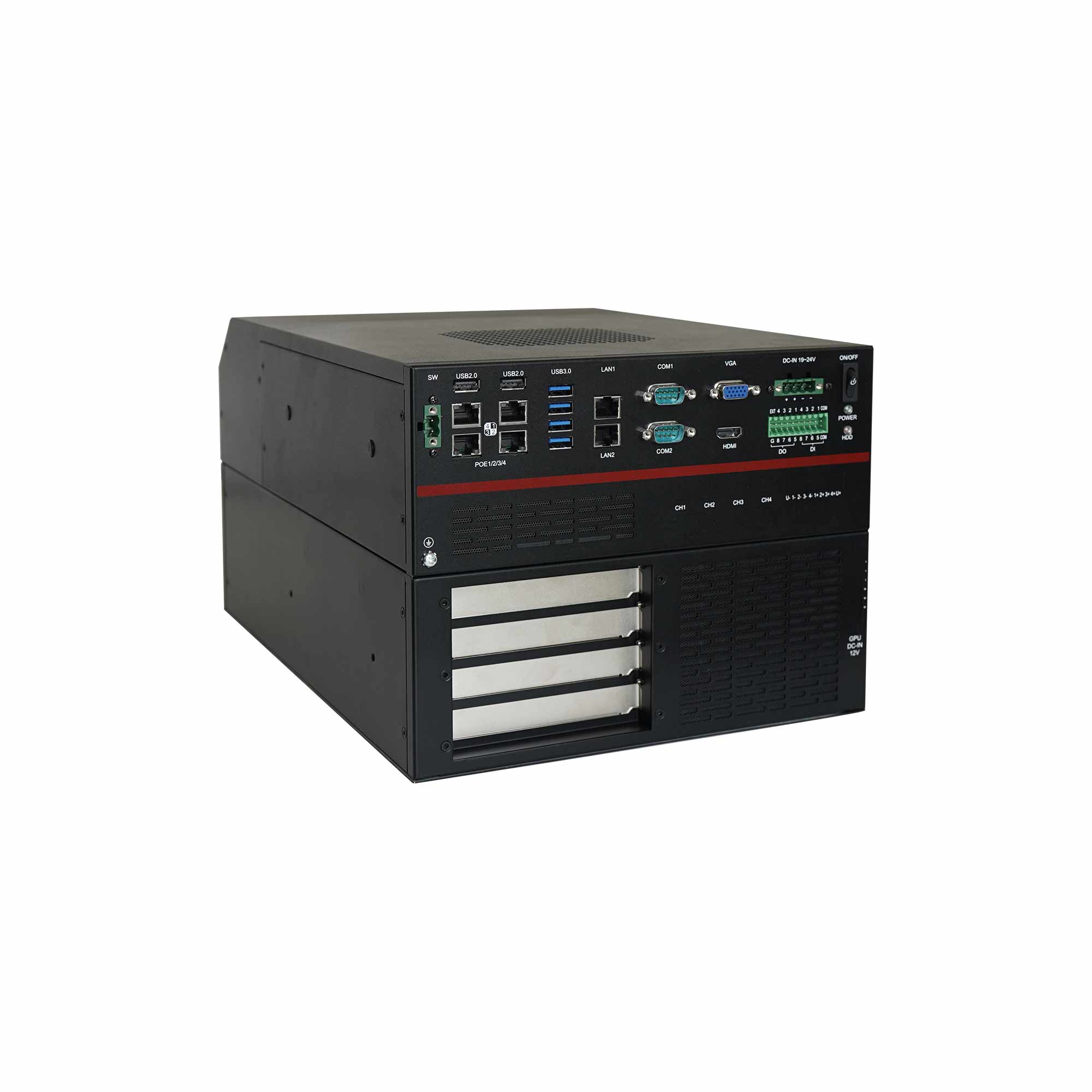

3U工控機, Intel? 第八/九代 Core? i 臺式機處理器（LGA1151針）Intel? Q370 芯片組，6 cores max TDP 65W, 8 cores max TDP 35W
| 處理器 Processor | Intel? 8/9 Gen. LGA1151 Core ? i CPU 6 cores max TDP 65W，8 cores max TDP 35W |
| 芯片組 Chipset | Intel Q370 PCH |
| 內存 Memory | 2 x DDR4 2400/2666MHz SO-DIMM, up to 64GB |
| 圖形 Graphics | Intel? UHD Graphics 630 |
| 存儲 Storage | 1 x Mini-PCIe slot for m SATA SSD 2 x SATA3.0 connector for 2.5inch HDD/SSD |
| 操作系統 OS | Windows 10, Linux |
| 看門狗 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| 網口 Ethernet | 1 x Intel? I211AT GbE (10/100/1000Mbps) 1 x Intel? I219LM GbE (10/100/1000Mbps) |
| 顯示 Video | 1 x VGA, max resolution up to 2048 x 1536@50Hz 1 x HDMI 1.4, max resolution up to 4096 x 2304@24Hz |
| 存儲 Storage | 2 x 2.5" SATA 3.0 Bay for 2.5inch HDD/SSD, Q370 support RIAD 0/1 |
| POE | 4 x Intel? I211AT GbE (10/100/1000Mbps) 802.3 af, max TDP 15W for each |
| 串口 COM | 1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board) 1 x RS232(Cable expansion,Optional) 8 x RS-232/422/485 (Mini-PCIe card expansion,Optional) |
| USB | 4 x USB3.1 Gen2 compatible USB 2.0 (On board) 2 x USB2.0 (On board) 4 x USB3.0 compatible USB 2.0 (Mini-PCIe card expansion,Optional） PS:Share DMI3.0 bandwidth from PCH, total 12Gbps on all ports |
| DIO | Mode: NPN/PNP (Switchable) 8in8out isolated DIO esponse time ≤ 20ms Input frequency: 1/2 Pin ≤ 200KHz, 3/4/5/6/7/8 Pin ≤ 500Hz High-voltage isolation up to 3000Vrms for DI & 2450Vrms for DO on all channels Driving capacity: 350mA max for NPN mode; 500mA max for PNP mode Support 5-24V isolated input on all channels |
| 光源控制 Lighting Controller | 4 Port lighting controller 24V output, PWM adjustment 0-100 levels brightness program adjustment 2.5A max current and 60W TDP for each channel, total 70W on all channels High-voltage isolation up to 3000Vrms on all channels Auto detect, dynamic tuning |
| 電源按鈕 Power Button | Power Button |
| 指示燈 LED | 1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write) |
| 遠程開關 Remote ON-OFF | 1 x Remote ON-OFF |
| 基礎擴展接口 Regular slot | 1 x Mini-PCIe, Co-lay with SATA3.0&USB2.0&PCIe X1 signal for multiple module expansion 1 x USB2.0 connector for internal dongle |
| 可選擴展接口 ( 兩槽擴展卡) Optional (2 slot expansion card) | 1 x Mini-PCIe with USB2.0 signal 1 x M.2 3042/3052 Key-B, Co-lay with USB3.1 G2&PCIe signal 1 x PCIe X16 (GPU card Max size :336x146mm ) 2 x PCIe X4 1 x PCI 1 x SIM card for 3G/4G module 1 x SIM card slot for 5G module |
| 操作溫度 Operating Temp. | -10℃ ~ 50℃ 65W CPU Must have 2pcs 60*20 system fan |
| 存儲溫度Storage Temp. | -40℃ ~ 85℃ |
| 濕度Relative Humidity | 5% ~ 95%, 非凝結狀態Non-condensing |
| 振動 Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
| 機械沖擊 Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| 電磁兼容 ESD | Contact 6KV, Air 10KV |
| 電源輸入 Power Input | 19-24V DC，AT/ATX Default Power consumption: Typical 180W; Maximum 330W(Suggestion,not include in package) Phoenix lockable connector Protection of over current/voltage and ereverse |
| 顯卡電源 GPU Power supply | 1. GPU card TDP ≤ 120W, share power supply with system from 330W adapter 2. GPU card TDP > 120W , Need additional power supply separate with system (developing) |
| 外觀 Housing | 鋁合金 Aluminum Alloy |
| 尺寸 Dimension | Four slot expansion model: 260 x 200 x 270 mm (W x H x D) |
| 重量 Weight | Four slot expansion model: 7.5kg |
| 安裝方式 Mounting | 桌面式 (Desk-Mount include horizontal and vertical) |
| 安規認證 Safety Certification | CCC |
